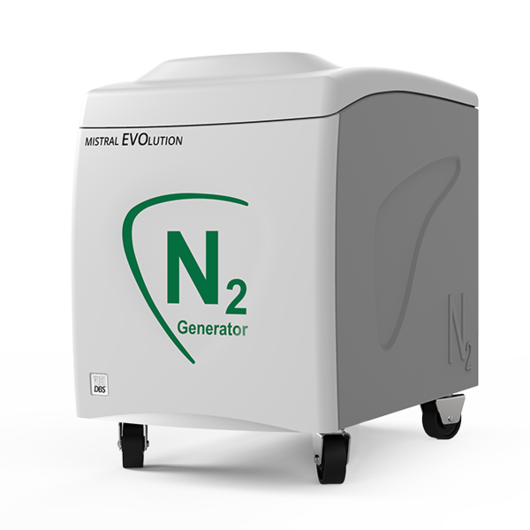

Mistral Evolution Nitrogen Generator

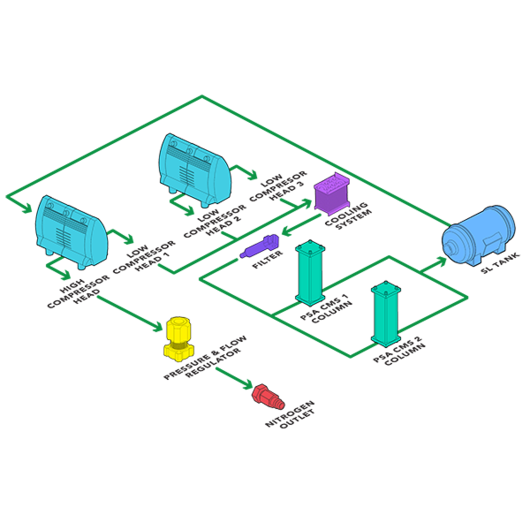

The VICI DBS ® Mistral Evolution is a self contained generator that produces up to 40 L/min of pure LC/MS grade nitrogen at up to 8 barg (116 psig). Nitrogen is produced by utilizing a combination of compressor and Carbon Molecular Sieve (CMS) technology. High and low pressure compressors are carefully matched to the CMS demand to ensure quite and reliable operation. This unique combination of dual compressor technology has several unique advantages over all other nitrogen generators commercially available.

Nitrogen is produced at low pressure, which ensures a longer compressor life and then compressed to 8 barg (116 psig) using a second stage compressor. This combination guarantees a long compressor life reducing maintenance costs and down time.

Download Product Brochure

FEATURES

▪︎ Produces a continuous supply of high purity nitrogen
▪︎ On-demand supply 24/7
▪︎ Flow rate at 8 barg (116 psig): 8 to 120 L/min
▪︎ Purity: LC/MS grade
▪︎ Integrated low noise oil free compressors
▪︎ Proprietary carbon molecular sieve technology

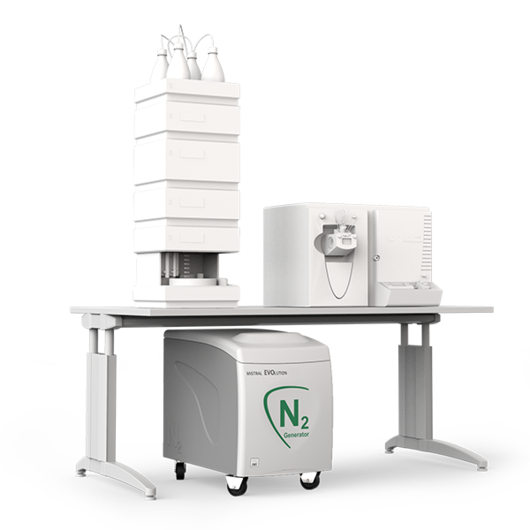

▪︎ Complete “plug and play” LC/MS solution

Benefits

▪︎ Eliminates dangerous high pressure cylinders helping to keep your employees safer
▪︎ Removes the logistics, inconvenience, downtime and costs of a cylinder system
▪︎ Flow capacity to match your specific instrument demands
▪︎ Ideal for all LC/MS applications
▪︎ Simple installation and operation
▪︎ Superior gas purification
▪︎ Peace of mind
▪︎ Install directly in the laboratory

Applications

LC/MS INSTRUMENTS

▪︎ Nebulizing gas
▪︎ Curtain gas
▪︎ Shield gas
▪︎ Sheath gas
▪︎ Electrospray gas
▪︎ APCI gas
▪︎ Jet stream gradient

SPECTROSCOPY

▪︎ Nuclear magnetic resonance spectrometers (NMR)

ANALYZER

▪︎ Thermal analyzers (TGA/DSC)

OTHER APPLICATIONS

▪︎ Sample concentrators
▪︎ Evaporative light scattering detector (ELSD)
▪︎ Corona detectors
▪︎ Charged aerosol (CAD)
▪︎ Sample evaporators
▪︎ Cell incubators
▪︎ IVF Stem Cell incubators
▪︎ Mask aligner
▪︎ Fume hood/cabinet purge
▪︎ 3D printer inerting
▪︎ Glove box purge

Technical specifications

Models & Specs	MISTRAL EVOLUTION 10	MISTRAL EVOLUTION 25	MISTRAL EVOLUTION 35	MISTRAL EVOLUTION 40
Nitrogen flow rate L/min	10	25	35	40
Nitrogen purity	+99.5%	99%	98%	97%
Dewpoint	-50 °C
Outlet pressure barg (psig)	3 (45)	8 (116)
Technology	Carbon molecular sieve
Warm up time (minutes)	20
LED indicators	Power on/off, system ready, errors
Electricity supply	110-120V 60Hz / 220-240V 50Hz
Power consumption (watts)	1800
Noise level	55 dBA @ 1 meter

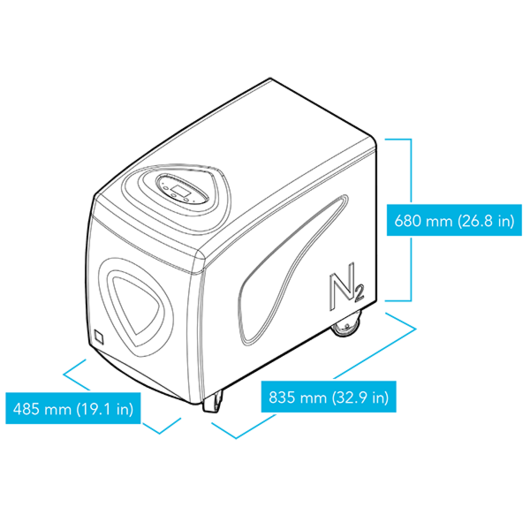

Dimensions mm (in)	482W x 641H x 835D (18.9W x 25H x 33D)
Weight kg (lbs)	90 (198)
Shipping dimensions mm (in)	550W x 800H x 940D (21.6W x 31.4H x 37D)
Shipping weight kg (lbs)	115 (254)
Operating temp °C (°F)	15 to 35 (59 to 95)
Outlet connection	6 mm OD compression or 1/4”
Certification	CE, FCC, MET (UL and CSA compliant)
Option	OPTIONS 10 liter tank
