GC Plus Rack Zero Air Generator

The VICI DBS ® GC Plus Rack Zero Air Generator utilizes compressed air that is prefiltered to 5 microns and then purified using a state of the art combined heated catalyst module. The output zero grade air is free from total hydrocarbons to <0.1 ppm, making it ideal for all FID applications. This purity level (measured as methane) produces a low signal to noise ratio, ensuring a flat and stable analyzer baseline.

With no moving parts and silent operation, the generator is extremely reliable and can be installed directly in the laboratory. With flow rates up to 30 L/min one system can support up to 75 FIDs. With short pay back time, minimal maintenance and operator attention they are an ideal addition to any analyzer application.

Download Product Brochure

FEATURES

▪︎ Produces a continuous supply of zero grade air
▪︎ On-demand supply 24/7
▪︎ Flow rate: 1 to 30 L/min
▪︎ Purity: <0.1 ppm THC
▪︎ Pressure: 4.5 to 10 barg (45 to 145 psig)
▪︎ Proprietary platinum catalyst technology
▪︎ Easy to install, operate and maintain

Benefits

▪︎ Eliminates dangerous high pressure cylinders helping to keep your employees safer
▪︎ Removes the logistics, inconvenience, downtime and costs of a cylinder system
▪︎ Ideal for all destructive GC detector applications - stable baseline with increased sensitivity and reputability
▪︎ Ideal for all GC detector applications - stable baseline with increased sensitivity and repeatability
▪︎Meets and exceeds the requirements for the most demanding analyzers
▪︎ Superior air purification with long life catalyst technology
▪︎ Peace of mind
▪︎ Improve your laboratory work flow and productivity

Applications

ANALYZER APPLICATIONS

▪︎ Online GC-FID
▪︎ Mud logging
▪︎ Total Hydrocarbon Analyzer (THA) detector gas

Technical specifications

Models & Specs	GC Plus 1800 Rack	GC Plus 5000 Rack	GC Plus 10000 Rack	GC Plus 15000 Rack
Flow mL/min	1800	5000	10000	15000
Purity - hydrocarbons	<0.1 ppm
Purity - CO	<0.1 ppm
Inlet pressure barg (psig)	4.5 to 10 (65 to 145)
Inlet air quality	Clean dry compressed air ISO8573-1:2010 Class 1.2.1
Max outlet pressure barg (psig)	1 barg (15 psig) drop from inlet
Max HC in	100 ppm
Max CO in	50 ppm
Technology	Platinum catalyst
LED indicators	Power on/off, system ready, errors
Warm up time (minutes)	45
Electrical supply	110-120V 60Hz / 220-240V 50Hz
Power consumption (watts)	200	550	550	550

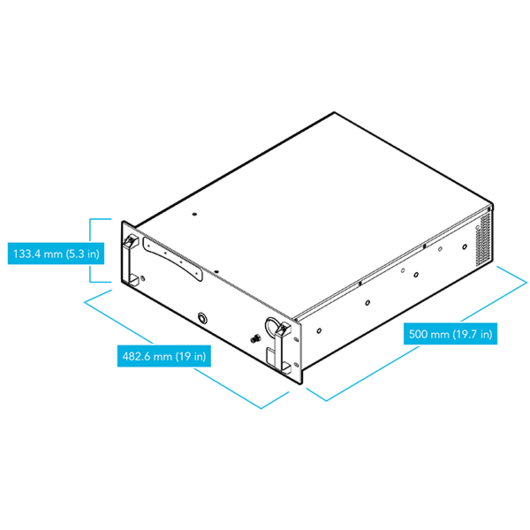

Dimensions mm (inches)	19”W x 3UH x 500D (19”W x 3UH x 19.6D)
Weight kg (lbs)	15 (33)
Shipping dimensions mm (in)	720W x 565H x 375D (28.3W x 22.2H x 14.7D)
Shipping weight kg (lbs)	19 (42)
Operating temp °C (°F)	15 to 35 (59 to 95)
Inlet connection	1/4” Compression
Outlet connection	1/8" Compression
Certification	CE, FCC, MET (UL and CSA compliant)
