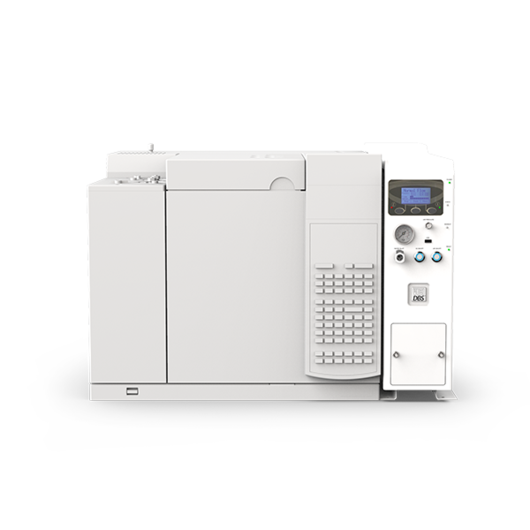

The VICI DBS ® PG Plus FID Station is a unique instrument that combines the reliability of the hydrogen generator with a zero air generator into one compact package. The FID Station can be installed under the GC taking no additional bench space. This simple but effective instrument can supply all your FID gas requirements. Designed as a hazard free alternative to high pressure cylinders, all that is required is deionized water, compressed air and a standard electrical supply for weeks of continuous operation.

Innovative software control allows unrivaled operational performance and safety as well as the additional options of auto water feed, remote networking and cascading for built in redundancy. With a maximum output capacity of 250 mL/min, one generator can supply up to 6 GC detectors. The compact design allows the generator to be installed directly in the laboratory eliminating the requirement for long gas lines and guaranteeing the delivery of high purity gas to your GC.

A sophisticated control system connected to an easy to use touch screen control continuously monitors vital operating parameters to ensure a safe and consistent performance. Built in sensors will shut the generator down if internal/external leaks are present, contaminated water, low water or over pressure. This is why the VICI DBS generators meet the strict safety guidelines to be certified for CE, FCC, and MET (UL and CSA compliant).

FEATURES

▪︎ Produces a continuous supply of hydrogen & zero air
▪︎ Compact and robust design to accommodate up to 80 kg (176 lbs) top loading - suits all GC manufacturers
▪︎ On-demand supply 24/7
▪︎ H2 Flow rate: 100 to 600 mL/min & zero air up to 5 L/min
▪︎ H2 Purity: +99.9996% & zero air purity, 0.1 ppm of hydrocarbons
▪︎ Pressure: 11 barg (160 psig)
▪︎ Proprietary 100% titanium cell technology
▪︎ Unique permeation membrane drying system
▪︎ USB connectivity
▪︎ Easy to install, operate and maintain

Benefits

▪︎ Eliminates dangerous high pressure cylinders helping to keep your employees safer
▪︎ Frees up valuable bench space
▪︎ Removes the logistics, inconvenience, downtime and costs of a cylinder system
▪︎ Flow capacity to match your specific instrument demands
▪︎ Ideal for all GC detector applications
▪︎ Exceeds the requirements for the most demanding GC applications
▪︎ Superior hydrogen production with reliable long life cell
▪︎ Minimal maintenance - no desiccant cartridges to change
▪︎ PC monitoring for maintenance, diagnostics and remote connection
▪︎ Peace of mind
▪︎ Improve your laboratory work flow and productivity

Applications

GC APPLICATIONS

▪︎ GC-FID fuel gas
▪︎ GC-NPD plasma gas
▪︎ GC-FPD fuel gas

ANALYZER APPLICATIONS

▪︎ Total hydrocarbon analyzer (THA) fuel gas

OTHER LAB APPLICATIONS

▪︎ Hydrogenation reactors
▪︎ Hydrogen fuel cells

Options



▪︎ Zero air flow option 1.8 L/min or 5 L/min
▪︎ I/O board
▪︎ Remote control software (RS232 or USB)
▪︎ Cascading hardware (standard or high purity
▪︎ H2 sensor
▪︎ FID-station MS extension
▪︎ Auto water refill

Technical specifications

Models & Specs PG Plus 100 FID Station PG Plus 250 FID Station
Flow mL/min 100 250
Purity +99.9996%
Dewpoint at 7 barg (100 psig) -25 oC (-77 oF)
Outlet pressure barg (psig) 0.5 to 11 (7 to 160)
Technology PEM (Proton Exchange Membrane) - 100% titanium cell
Drying system Regenerative Permeation Membrane
Deionized water quality Minimum < 1 micro S/cm @25ºC - 1 Mohm-cm@25ºC - ASTM II Recommended < 0.2 microS/cm @25ºC - 5 Mohm-cm @25ºC - ASTM II
Internal water tank (liters) 7
Safety Automatic shut down - internal/external hydrogen leak, overpressure and low water
Display Touch screen with operating parameters, system status and safety alarms
LED indicators Power on/off, system ready, errors
Interface USB mod A
Load capacity kg (lbs) 80 (176)
Electrical supply 110-120V 60Hz / 220-240V 50 Hz
Power consumption (watts) 65 115
Dimensions mm (inches) 690W x 150H x 680D (27W x 6H x 26.7D)
Weight kg (lbs) 39 (86)
Shipping dimensions mm (in) 770W x 590H x 410D (30.3W x 23.2H x 16.1D)
Shipping weight kg (lbs) 45 (99)
Operating temp °C (°F) 15 to 35 (59 to 95)
Outlet connection 1/8" Compression
Certification

CE, FCC, MET (UL and CSA compliant)



ZERO AIR FLOW OPTIONS DB-FH-1800 DB-FH-5000
Flow mL/min 1800 5000
Purity - hydrocarbons + CO <0.1 ppm
Inlet pressure barg (psig) 4.5 to 10 (65 to 145)
Inlet air quality Clean dry compressed air ISO8573-1:2010 Class 1.2.1
Max outlet pressure barg (psig) 5 (73)
Max HC in 100 ppm
Max CO in 50 ppm
