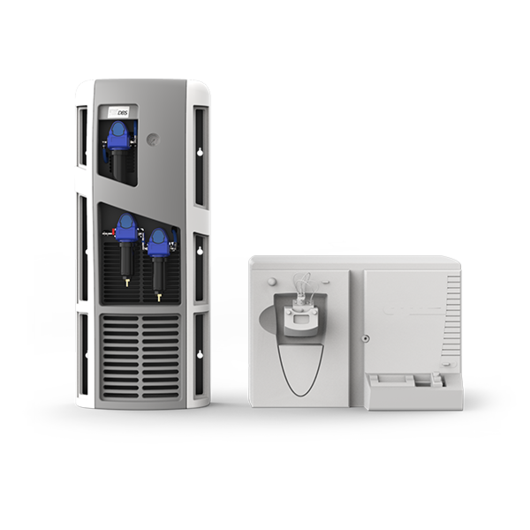

Whisper-0 Hybrid Nitrogen + Air Generator



The VICI DBS ® Whisper-0 Hybrid Nitrogen + Air can produce up to 120 L/min of high purity LC/MS grade nitrogen at pressures up to 8 barg (116 psig). These generators are engineered to transform standard compressed air into a safe regulated nitrogen and high purity air supply with minimal operator attention and maintenance. Nitrogen is produced by utilizing a combination of filtration and membrane separation technologies. A standard supply of compressed air is filtered by high efficiency coalescing filters to remove all contaminants down to 0.1 micron. A unique proprietary membrane then separates the air into a concentrated nitrogen stream. Air is purified using a unique air purification membrane removing contamination and water.

Membrane technology offers some unique performance benefits for LC/MS users including phthalate free nitrogen, silent operation, no moving parts and no electrical requirements. The generator can be installed directly in the laboratory either floor or walled mounted and requires minimal operator attention or maintenance. The generators are designed to run continuously providing a clean, dry high purity nitrogen supply.



FEATURES

▪︎ Produces a continuous supply of high purity nitrogen and air for Sciex, Shimadzu and Perkin Elmer LC/MS
▪︎ On-demand supply 24/7
▪︎ Flow rate at 8 barg (116 psig): 8 to 120 L/min
▪︎ Purity: LC/MS grade | Integrated economy mode as standard
▪︎ Proprietary membrane technology
▪︎ No noise, no moving parts and no electricity

Benefits

▪︎ Eliminates dangerous high pressure cylinders helping to keep your employees safer
▪︎ Removes the logistics, inconvenience, downtime and costs of a cylinder system
▪︎ Flow capacity to match your specific instrument demands
▪︎ Ideal for all LC/MS applications
▪︎ Reduces compressed air consumption and cost
▪︎ Superior air purification with regenerative membrane
▪︎ Peace of mind
▪︎ Install directly in the laboratory

Applications

LC/MS INSTRUMENTS

▪︎ Sciex
▪︎ Shimadzu
▪︎ Perkin Elmer
▪︎ Shield gas
▪︎ Sheath gas
▪︎ Electrospray gas
▪︎ Nebulizing gas

Technical specifications

Models & Specs Mini Whisper Hybrid Whisper 0-10 Hybrid Whisper 0-40 Hybrid Whisper 0-40 Hybrid PE Whisper 0-80 Hybrid Whisper 0-120 Hybrid
Curtain gas flow rate L/min - nitrogen 12 @ 7 barg (100 psig) 12 @ 7 barg (100 psig) 40 @ 7 barg (100 psig) 15 @ 7 barg (100 psig) 80 @ 7 barg (100 psig) 120 @ 7 barg (100 psig)
Exhaust gas flow rate L/min - dry air 10 @ 4 barg (60 psig) 10 @ 4 barg (60 psig) 25 @ 4 barg (60 psig) n/a 25 @ 4 barg (60 psig) 25 @ 4 barg (60 psig)
Source gas flow rate L/min - dry air 26 @ 7 barg (100 psig) 26 @ 7 barg (100 psig) 22 @ 7 barg (100 psig) 70 @ 7 barg (100 psig) 22 @ 7 barg (100 psig) 22 @ 7 barg (100 psig)
Nitrogen purity at max flow rate 99% 99% 97% 99% 97% 95%
Dewpoint 40 °C
Outlet pressure barg (psig) 7 (100)
Inlet pressure barg (psig) 8.5 to 10 (123 to 160)
Actual inlet compressed air requirement L/min 96 96 197 220 297 347
Recommended comp. air inlet requirement (L/min) 192 192 394 440 594 694
Pressure drop barg (psig) 1.5 (22)
Inlet air quality Clean dry compressed air ISO8573-1:2010 Class 1.2.1
Technology Membrane
Warm up time (minutes None
Electrical supply None
Noise level None

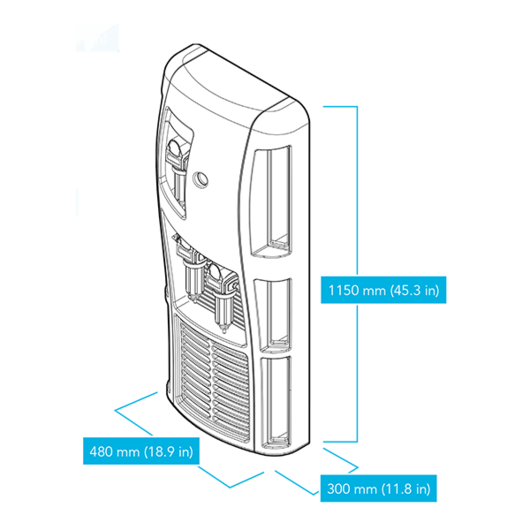

Product dimensions mm (inches) 348W x 735H x 350D (13.7W x 29H x 20.8D 480W x 1300H x 300D (18.9W x 51H x 11.8D)
Product weight kg (lb) 8 (17.6) 15 (33) 25 (55) 25 (55) 30 30
Shipping dimensions mm (inches) 890W x 445H x 3530D (35W x 17.5H x 20.8D) 1270W x 375H x 590D (18.9W x 51H x 11.8D)
Shipping weight kg (lbs) 12 (27) 22 (49) 32 (71) 32 (71) 37 (82) 37 (82)
Operating temp °C (°F) 15 to 35 (59 to 95)
Inlet connection 3/8” G
Outlet connection 6 mm or 1/4” OD Compression
Certification CE
